YIPANG Dental Dry&Wet Multifunctional Milling Machine

Features

· The C52 is a fve-axis linkage dry and wet denttal milling machine.

· Its body is constructed from box-type integrated aviation-gradealuminum, ensuring both lightweight properties and exceptional rigidity.

· Designed with superior dust-proof and waterproof performance, the machine featuresa fully enclosed silicone dustproof flm, offering signifcant improvements over traditionalequipment that typically uses organ pipe covers or dustproof plates.

· Effortless fixture replacement: The AB rotary axis is equipped with a high-precision harmonicreducer, delivering high torque and rapid speed response. The material fxture employs apneumatic zero-point chuck, enabling quick and seamless replacement of various fixtures.

· Enhanced machining angles: The disc fxture features a semi-circular opening designallowing for vertical processing at 90°. This results in superior surface quality for themilled dental restorations.


    Volume
    498*455*766mm
    Weight
    117KG
    Motor
    Micro Step Servo
    CNC
    5-aixs 5-linkage
    Power
    1.3kw (Spindle 600W)
    Tool
    16
    Position Accuracy
    0.002mm
    Feed rate
    3600mm/min
    Repeat Position Accuracy
    0.002mm
    MaxSpeed
    60,000 rpm
    A-axis Rotation Angle
    0°~360°
    B-axis Rotation Angle
    -115°~30°

    Material shape

    Disc: 98mm*(10mm~35mm) /Glass ceramics: diameter 6mm/ Titanium material: diameter 8mm
    Machinable material
    Premill Titanium Rod /Glass Ceramics/Zirconia/PMMA/Wax/Peek

    01

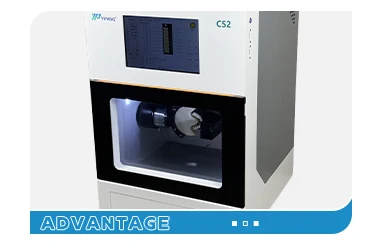

    The C52 is a five-axis linkage dry and wet denture cutting machine. The body is a box-type integrated aviation aluminum material, which maintains Light weight and strong rigidity
    02

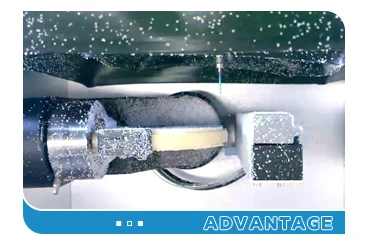

    Excellent dust-proof and waterproof effect. The body uses fullyenclosed silicone dustproof film, which is different from the traditional equipment's organ pipe cover and dustproof plate.
    03

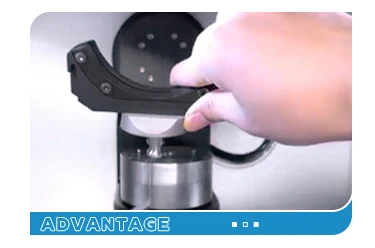

    Easy fixture change. The AB rotating shaft uses a high-precision harmonic reducer to achieve high torque and high-speed response. The material fixture uses a pneumatic zero-point chuck to achieve rapid replacement of various fixtures.
    04
    Large machining angle. The disc fixture is a semi-circular opening fixture that can be processed vertically at 90°, resulting in better surface effects for the processed teeth.
